Precision Production for Diverse Industries

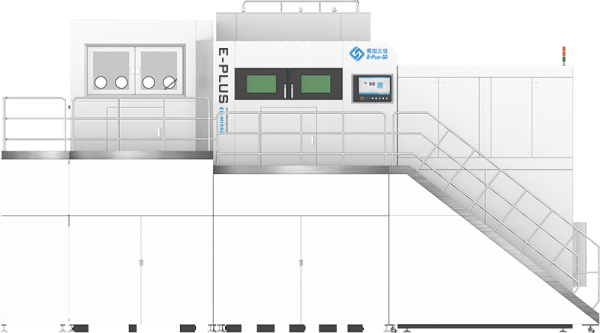

The EP-M1550 utilizes a spacious structural design and a 16-laser system to guarantee efficient production. Its multi-laser precision positioning and groundbreaking area splicing control technology ensure consistent and stable results throughout the entire printing process.
This system is compatible with a variety of materials including titanium alloy, aluminum alloy, nickel alloy, maraging steel, stainless steel, cobalt chrome, and more. Thus, the EP-M1550 stands as an excellent option for the direct production of large, precise, and high-performance components for applications in the aerospace, aviation, and various other industries.
Machine Model | EP-M1550 |
Build Chamber (XxYxZ) | 1558 x 1558 x 1200 mm (61.34 x 61.34 x 47.24 in) (height can be customized to 2000 mm) (height incl. build plate) |
Optical System | Fiber Laser 16 x 500 W / 700 W ( can be customized to 25 lasers) |
Spot Size | 70 - 120 μm |
Max Scan Speed | 8 m/s |
Layer Thickness | 20 - 120 μm |
Theoretical Printspeed | Up to 650 cm³/h |
Material | Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc. |
Substrate heating | - |
Power Supply | 380 V, 50 / 60 Hz, 77 kW |
Gas Supply | Ar / N₂ |
Forming chamber oxygen content | ≤100 ppm |
Dimension (WxDxH) | 10180 x 5690 x 5650 mm |
Weight | 70000 kg |
Software | EP-Hatch , EP Control |
Input Data Format | STL file or other convertible format |
